Universal Rear Air Bag Mount Kit For 4 Links

Universal Air Bag Mounting Kit – Platforms and Cross Member

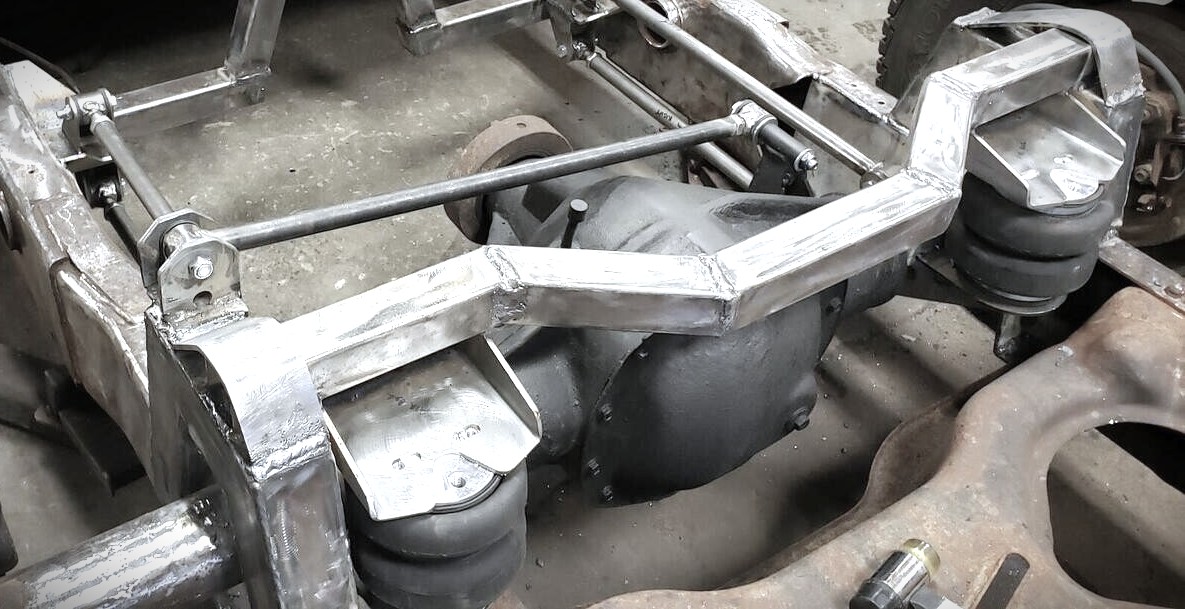

Easily convert coil over 4 links to air bag suspension with these quality parts. Upper pad brackets are pre-formed to weld to a crossmember or a boxed frame. Notches are for clearing the air line fitting. Bracket is 6-1/2” wide with 2 3/8” diameter holes on 2-3/4” centers which are 4” from the edge of the bracket. Lower axle rackets are also pre-formed with stubs to aid in welding to any axle tube. Bracket is 5.12″ wide. All brackets are made of 3/16″ thick US steel. Also included is a cut to fit 46″ long 1.50″ x 1.50″ .125″ wall crossmember. Weld this to the inside of your frame rails to mount the upper bag pads. Allows you to move the bar up and down to set static ride plus shift the bag mounts inboard or out to clear suspension/ axle/ frame. Bar kit comes with 2 heavy wall standoffs and 5/8″ bolts to mount shocks giving you some flexibility on where to mount shocks.

Kit Includes

• 2 Lower Air Bag Brackets
• 2 Upper Air Bag Brackets
• 1 Crossmember

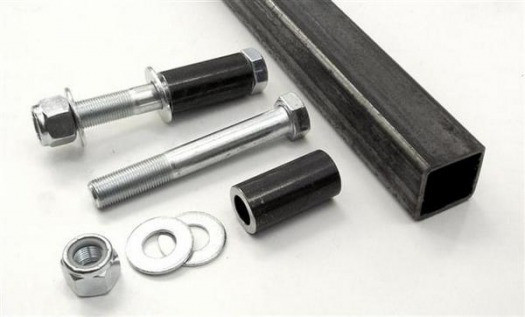

• Upper Shock Standoffs with 5/8″ Bolts

Kit does NOT include air bags or shocks. We suggest installing the kit first. Set your ride height and shop for the bags and shocks. We offer Viking universal double adjust smooth body shocks for the ultimate ride quality!
