TCI 66-69 Ford Fairlane 68-69 Torino Coil Over IFS Front Suspension Kit

SPECIAL–FREE POWER RACK, SBF ENGINE MOUNTS & BRAIDED BRAKE LINES!

COYOTE or BBF MOUNTS WITH NOTCHED CROSSMEMBER NOW AVAILABLE!

• FREE SWAY BAR
• STOCK OR DROP SPINDLES
• FREE INNER PANEL SHEET METAL
• FREE SBF ENGINE MOUNTS
• FREE ZINC COATED DRILLED ROTOR UPGRADE
• CPP LARGE BORE CALIPERS

• PLUS A FREE POWER RACK and BRAIDED LINES ON FAB Quest!

Application:  66-69 Ford Fairlane & 68-69 Torino Pro Touring IFS

NEW! TCI 66-69 Ford Fairlane 68-69 Torino Coil Over IFS Front Suspension Kit: This all newly designed Total Cost Involved Custom IFS for the Ford Fairlane creates the corner carving Pro Touring ride all Fairlanes should have been! This weld in kit lowers your stance while offering a large amount of suspension tuning with adjustable coil over shocks. Depending on your options, front end weight loss can be substantial. Braking is excellent with included modern disc brakes along with frame stiffening plates to keep that rubber planted where it needs to be. These thoughtfully engineered kits create more room under the hood making big block transplants that much easier as well as improved header clearance. Also included are inner fender sheet metal for a factory appearing install.

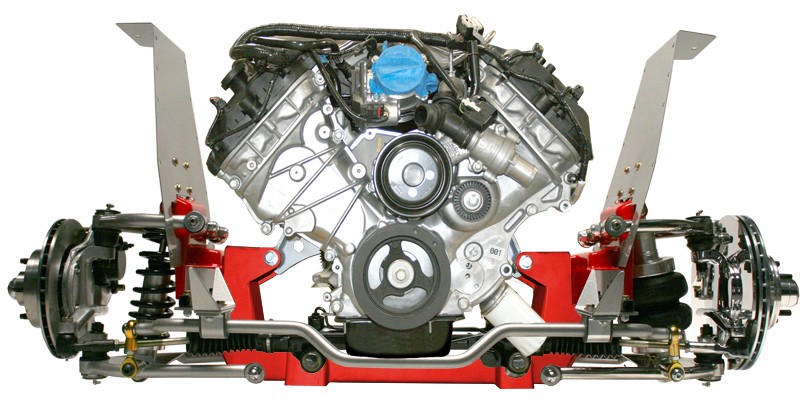

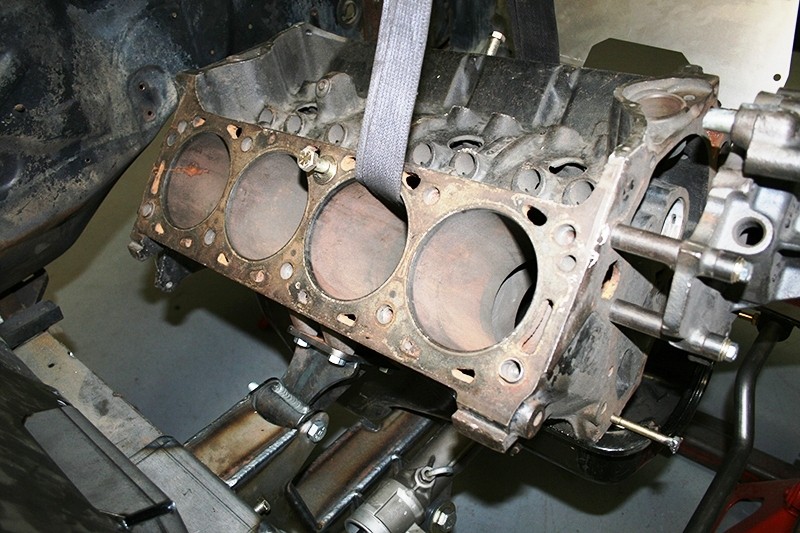

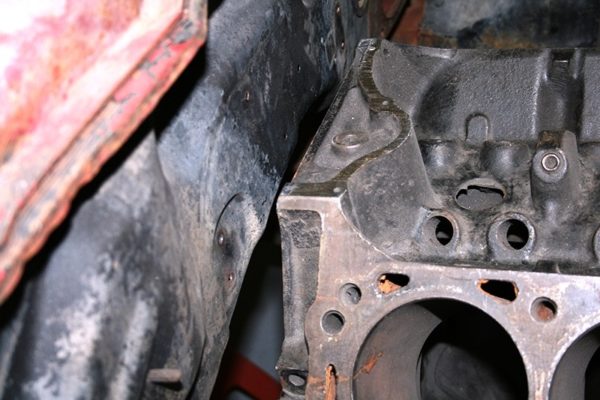

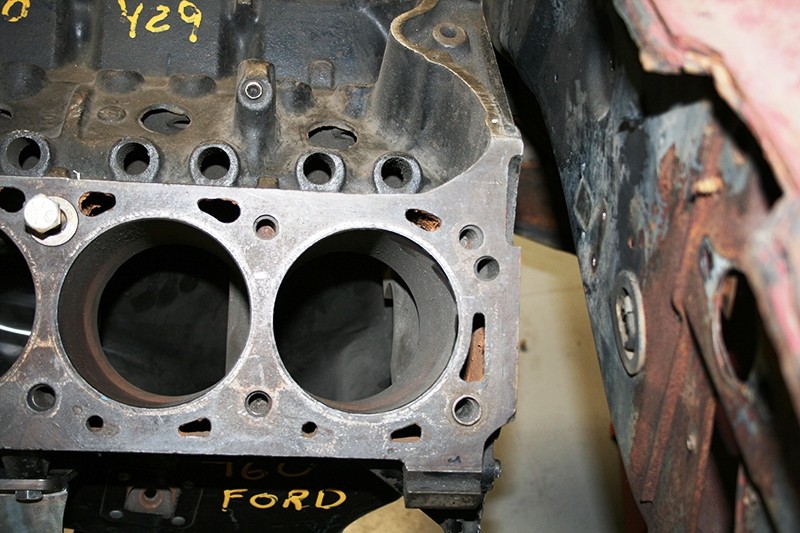

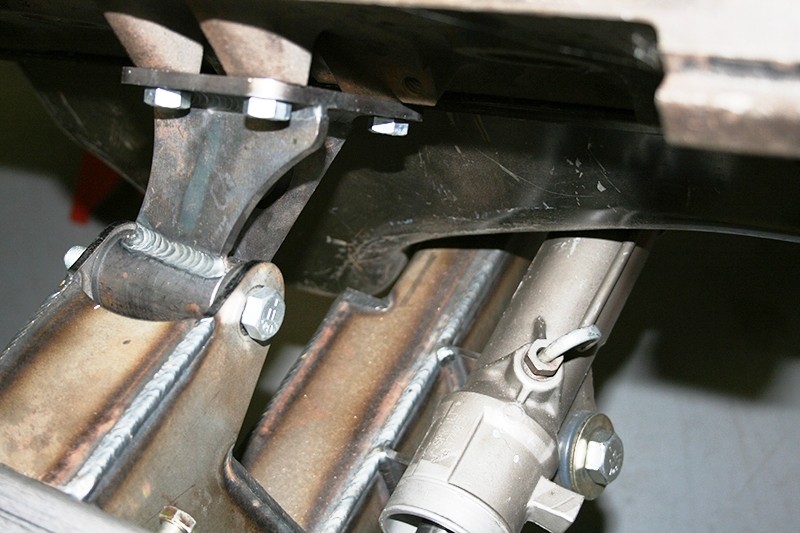

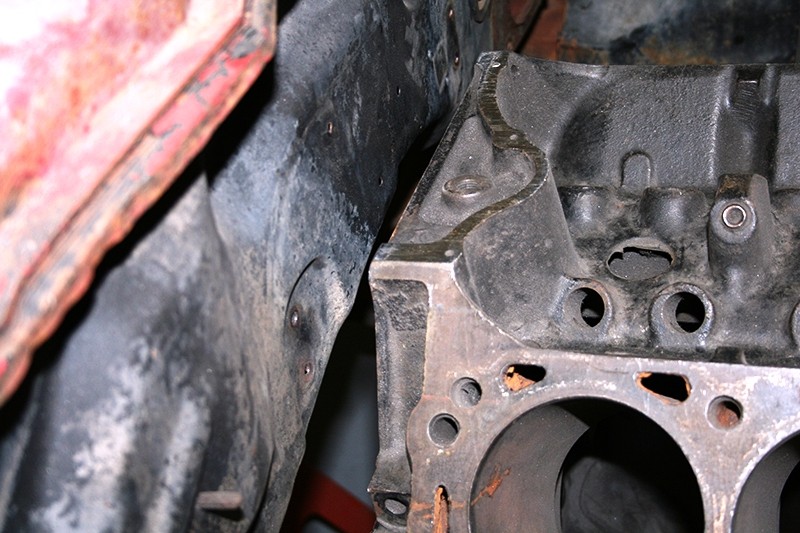

The new Mod Motor or BBF engine option allow the use of the stock oil pan. It will also improve firewall clearance although firewall mods will be necessary. BBF images of the firewall clearance are included in the thumbnails to your left. This option, available below, does come with a special notched .250″ plate steel crossmember only used with these mounts.

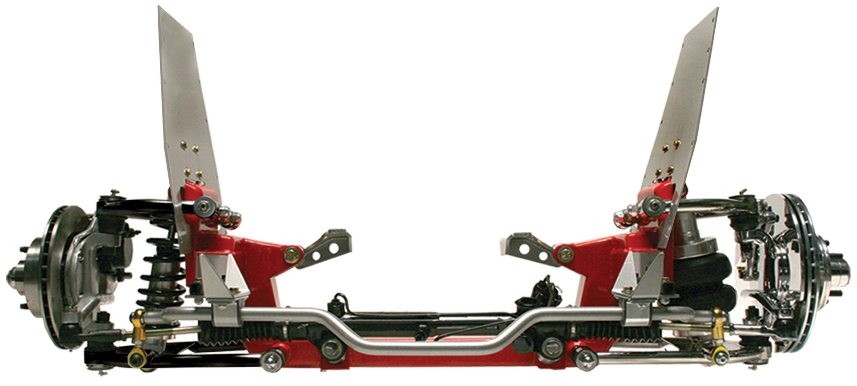

Every Base Custom IFS Features:

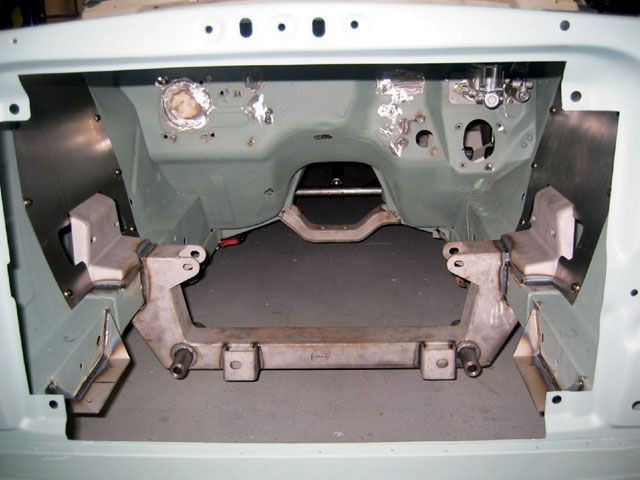

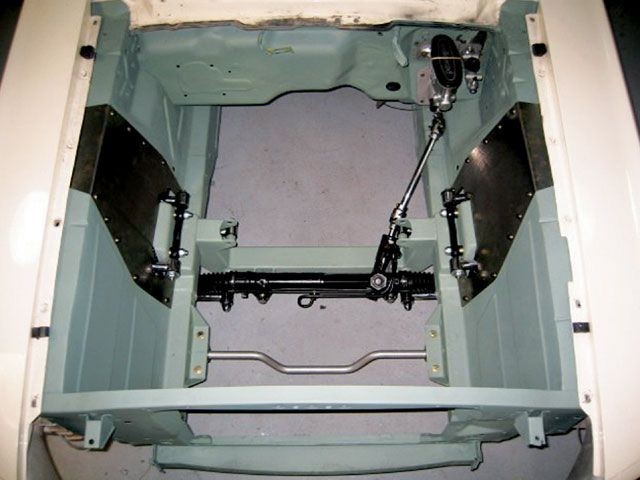

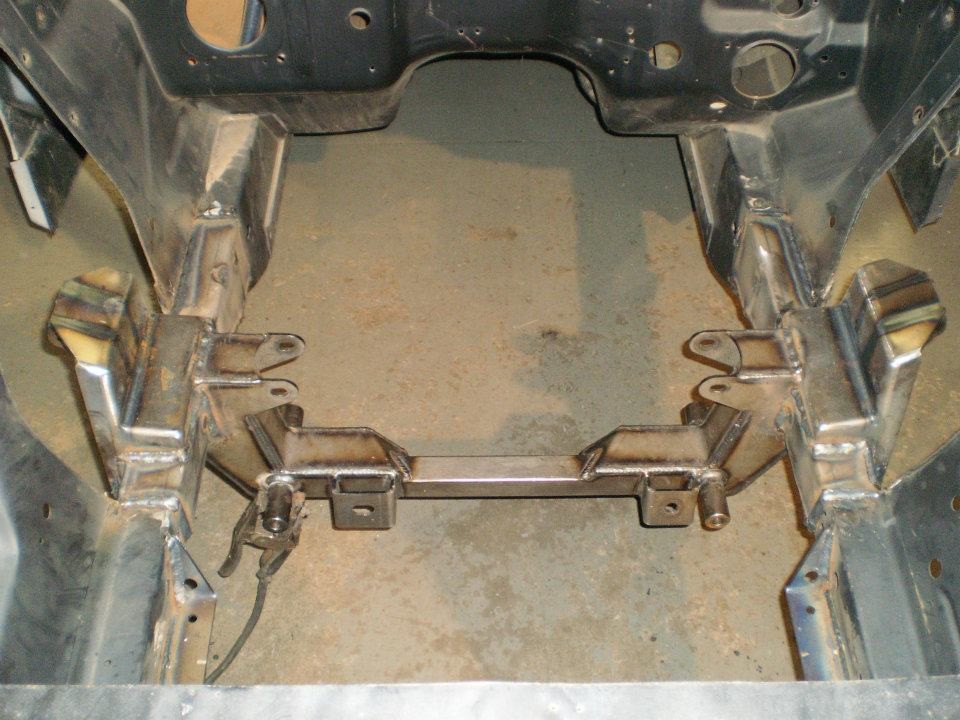

• Laser Cut and TIG Welded “In House” Custom Cross Member
• Frame Reinforcement Plates
• Upper Control Arm and Flattened Shock Mounting Towers
• 1″ Upper, 1 1/8″ Lower Tubular A-arms With Urethane Bushings

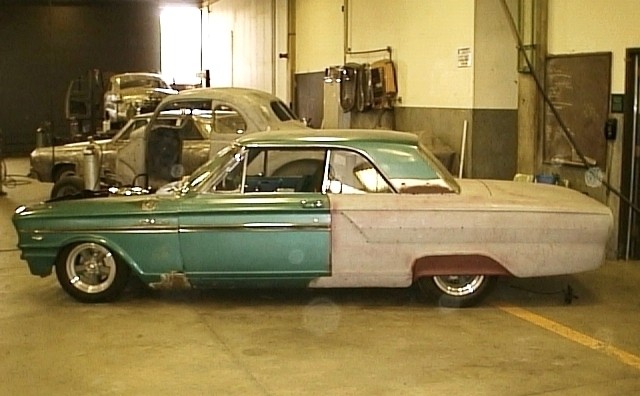

• TCI Custom Steering Arms and Stock Height or Drop Spindles

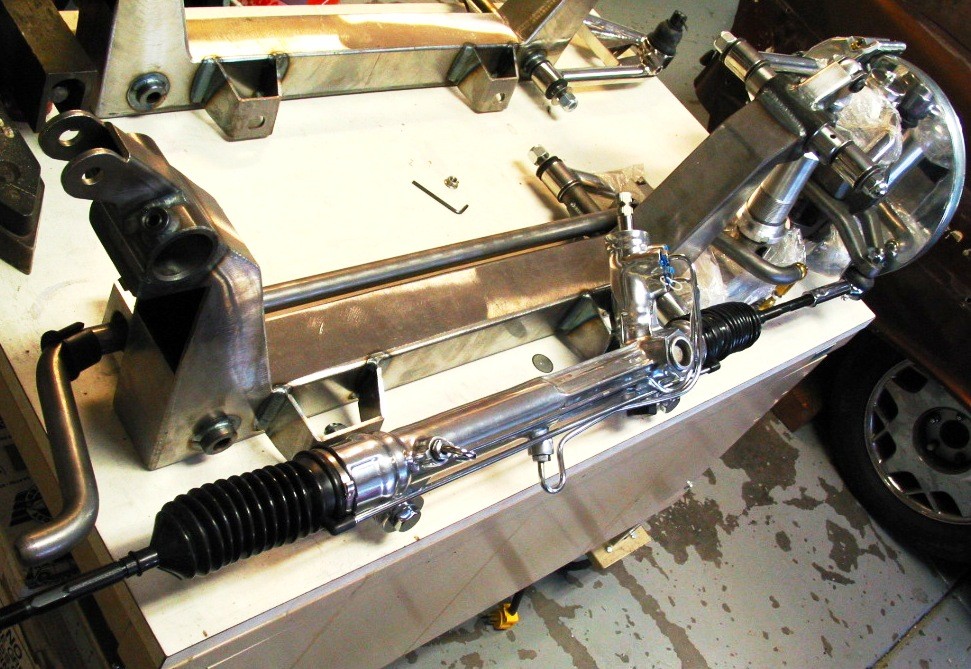

• Power Rack & Pinion

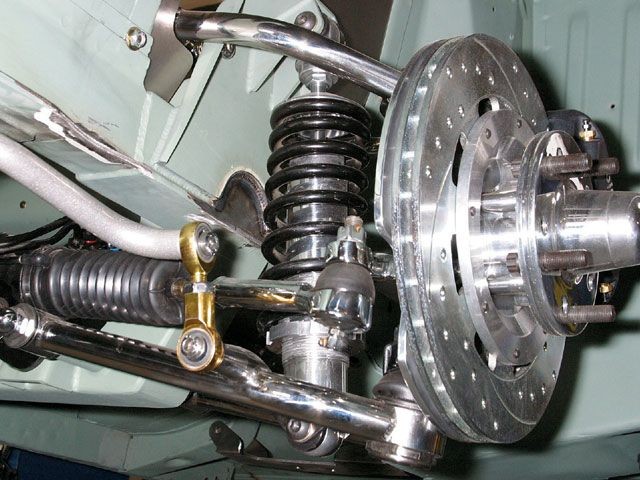

• 1″ Sway Bar

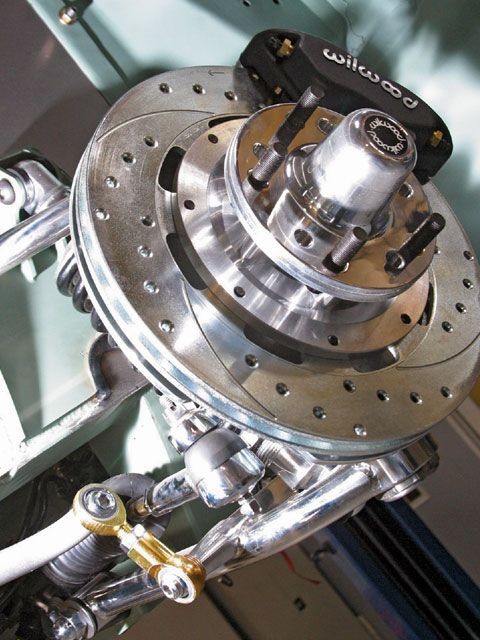

• 11″ GM Drilled Slotted Disc Brakes w/Large CPP Calipers
• RideTech Billet “Coil Over” Shocks With 400# Black Painted Springs
• Hardware and Excellent Instructions
• 5x 4.50″ Ford Bolt Pattern Standard

Show package and many hardware options available below!
